LED Street Lights

High power LED Lights are extremely efficient and save more than 60% energy in comparison with conventional sodium or mercury lamps. These LED lights offer almost eight times more brightness than incandescent lamps without any negative impact on the environment. Operating for an average of 10 hours per day LED light has a life span of more than 13 years, or 50,000 hours. The LED Lights can also be solar powered using DC driver, solar panel and batteries.




Features


  • Precise optical design, using PC lens of beam angle of 75*150o

  • Bridgelux LED having CRI>80 with super brightness, High uniformity and low optical attenuation.

  •  Professional heat sink design to reach best cooling effect.

  •  Provides More than 60% energy saving.

  •  Aluminum Housing complies with IP66 for outdoor application.

Specifications

LED Power

StLL(A)ML30W

StLL(A)ML60W

StLL(A)ML90W

StLLO(A)M100W StLL(A)ML120W StLL(A)ML150W

LED Power

30W

60W

90W

100W 120W 150W

Input Voltage

150-300VAC

150-300VAC

150-300VAC

150-300VAC 150-300VAC 150-300VAC

Power Consumption

33W

65W

99W

109W 130W 164W

LED Flux

3600Lm

7200Lm

10800Lm

12000Lm 14400Lm 18000Lm

LED Lumen efficiency

110-120Lm/W

110-120Lm/W

110-120Lm/W

110-120Lm/W 110-120Lm/W 110-120Lm/W

Beam Angle

75*150°

75*150°

75*150°

75*150° 75*150° 75*150°

Lamps Efficiency

91%

91%

91%

91% 91% 91%

Power factor

>0.95

>0.95

>0.95

>0.95 >0.95 >0.95
Color temperature 2100~6500K 2100~6500K 2100~6500K 2100~6500K 2100~6500K 2100~6500K
Working Tempt -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C
IP rating IP66 IP66 IP66 IP66 IP66 IP66
Net Weight 1.9kg 3.5kg 7.2kg 7.2kg 8.2kg 9.2kg

Product Dimension

380x90x100mm

400x180x110mm

550x295x75mm

555x315x140mm 640x295x75mm 730x290x75mm

Applications

Highways, Motorways, Streets, Auto-filling Stations, Gardens and parks, Markets, Parking lots, Housing schemes, Airports, Stadiums, Hospitals, Educational Institutions, Factories boundary wall.

STLL(A)-ML-30W STLL(A)-ML-90W STLL(A)-ML-120W STLL(A)-ML-150W


« Go Back



Solar LED street lights

Solar powered LED street lights are an ideal lighting system to illuminate the areas faced with frequent power outages, non-availability of grid supply and to conserve expensive energy resources. Components of the system include solar panel, charge controller, batteries and LED light.

Specifications

LED Power

30W

60W

84W

Solar panel wattage

100W

200W

300W

Battery Rating

2X40AH

2x60AH

2x100AH

LED Flux

3600Lm

7200Lm

10800Lm

24V Charge Controller

Have time control switch , light control switch, over voltage, over charge and over discharge protection

Have time control switch, light control switch, over voltage, over charge and over discharge protection

Have time control switch, light control switch, over voltage, over charge and over discharge protection

Power consumption

35W

65W

95W

Cloudy and rain backup

One Day

One day

One day

Lamps Efficiency

95%

95%

95%

Cool Temperature

2100K-6500K

2100K ~ 6500K

2100K ~ 6500K

Working Temperature

-40 C- 50 C

-40 °C ~ 50 °C

-40 °C ~ 50 °C

IP Rating

IP66

IP66

IP66

Net Weight

2Kg

3.5 Kg

7.2 Kg

Product Dimension

380*90*100mm

480*180*110mm

550*295*75mm



Note: The above specification is for reference design only; the actual design is subject to local solar intensity and customer specifications.

Features


  • Precise optical design, super brightness and high uniformity, meet different road lighting.

  • Professional heat sink design to reach best cooling effect.

  • Weather proof housing complies with IP66 Standards.

  • With the help of intelligent controller, LED lights can be programmed on full lighting and half lighting in specific hours.

  • Saving on electricity wiring, cabling and civil works.

  • Maintenance free batteries.

Applications

  • Street lights

  • Boulevards, highways and motorways

  • Auto filling stations

  • Garden and parks

  • Flood light for market, Airport & stadium


« Go Back



LED search lights

LED Lights are extremely efficient and save more than 60% energy in comparison with conventional sodium or mercury lamps. These LED lights offer almost eight times more brightness than incandescent lamps without any negative impact on the environment. Operating for an average of 10 hours per day LED light has a life span of more than 13 years, or 50,000 hours. The LED Lights can also be solar powered using DC driver, solar panel and batteries.

Features

·         Precise optical design, using PC lens of beam angle of 75*150o

·         Bridgelux LED having CRI>80 with super brightness, High uniformity and low optical attenuation.

·         Professional heat sink design to reach best cooling effect.

·         Provides More than 60% energy saving.

·         Aluminum Housing complies with IP66 for outdoor application.

·         Various mounting options: on wall or on pole, with adjustable angles.

Applications

Highways intersections, Motor ways interchanges, Tunnels & underpasses, Entrances of Gas-filing Stations, Gardens and parks, Billboards and hoarding, Parking lots, Housing schemes, Airports, Stadiums, Hospitals , Educational institutions, Factories & Workshops, Boundary wall

Specifications

Models

SLL(A)-ML-30W SLL(A)-ML-60W SLL(A)-ML-90W SLL(A)-ML-120W SLL(A)-ML-150W SLL(A)-ML-220W

LED Power

30W 60W 90W 120W 150W 210W

Input Voltage

150-300VAC 150-300VAC 150-300VAC 150-300VAC 150-300VAC 150-300VAC

Power Consumption

33W 65W 99W 130W 164W 223W

LED Flux

3600Lm 7200Lm 10800Lm 14400Lm 18000Lm 25200Lm
LED Lumen Efficiency

110-120Lm/W 110-120Lm/W 110-120Lm/W 110-120Lm/W 110-120Lm/W 110-120Lm/W

Beam Angle

75*150° 75*150° 75*150° 75*150° 75*150° 75*150°

Lamps Efficiency

91% 91% 91% 91% 91% 91%
Power factor >0.95 >0.95 >0.95 >0.95 >0.95 >0.95
Color temperature 2100~6500K 2100~6500K 2100~6500K 2100~6500K 2100~6500K 2100~6500K
Working Temp -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C -40°C~50°C
IP rating IP66 IP66 IP66 IP66 IP66 IP66
Net Weight 1.9kg 3.5kg 6.4kg 7.4kg 8.4kg 10.4kg

Product Dimension

380x90x100mm

400x180x110mm

350x295x180mm 440x295x180mm 530x295x180mm 710x295x180mm

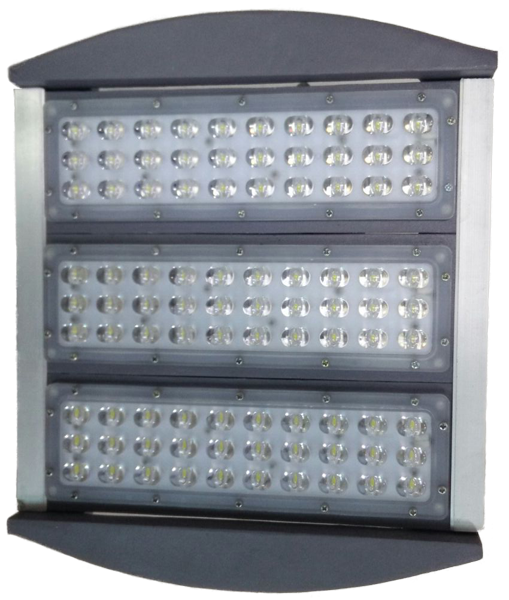

 SLL(A)-ML-60W      SLL(A)-ML-90W         SLL(A)-ML-120W        SLL(A)-ML-150W


« Go Back


 HIGH MAST LED LIGHT

 High Mast LED Light is Design for lightening of Stadiums, Arenas, Train Stations Ports                    and Industrial Plant. Comcept High Mast LED Light is of high luminous intensity with                      less power consumption. Innovation and efficiency are the unique features of our LED lights.

 Features

    o Bridgelux LED chip with high luminosity (110lm/w) and less decay ratio.

    o  Precise optical design and high uniformity with IP66 standard.

o   Heat-sink with hardness of 6063 aviation aluminum for perfect heat conduction

o   and anti-corrosion with Taiwan Meanwell driver (HLG-240H).

o   Passive heat transfer, no need of fan, water pump or cooling consumption.

o   70% energy saving. 400W LED mast light can replace 1200W HPS light.

LED power 240W 440W
Input Voltage 90-300VAC 90-300VAC
Efficiency 93% 93%
Power factor 0.95 0.95
Luminous 24200Lm 48400Lm
Beam angle 39 degree 39 degree
CRI Ra80 Ra80
Color Temperature 4000K 4000K
Working Temperature -40°C ~ 50°C -40°C ~ 50°C
IP Rating IP66 IP66
Net Weight 14.5Kgs 28.5Kgs
Product dimension 435x395x200mm 435x790x200mm

 Applications

Highways intersections, Motor ways Interchange, Shipyards, Mines, Warehouses, Parking lots, Airports, Stadiums, Hospitals, Exhibition Halls.

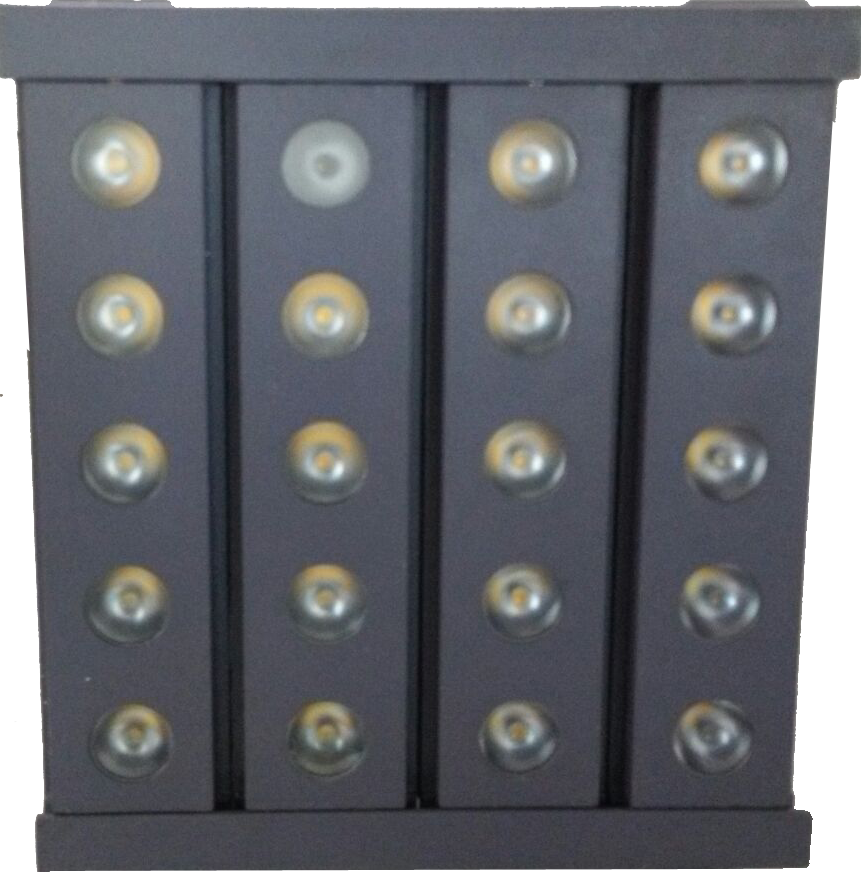

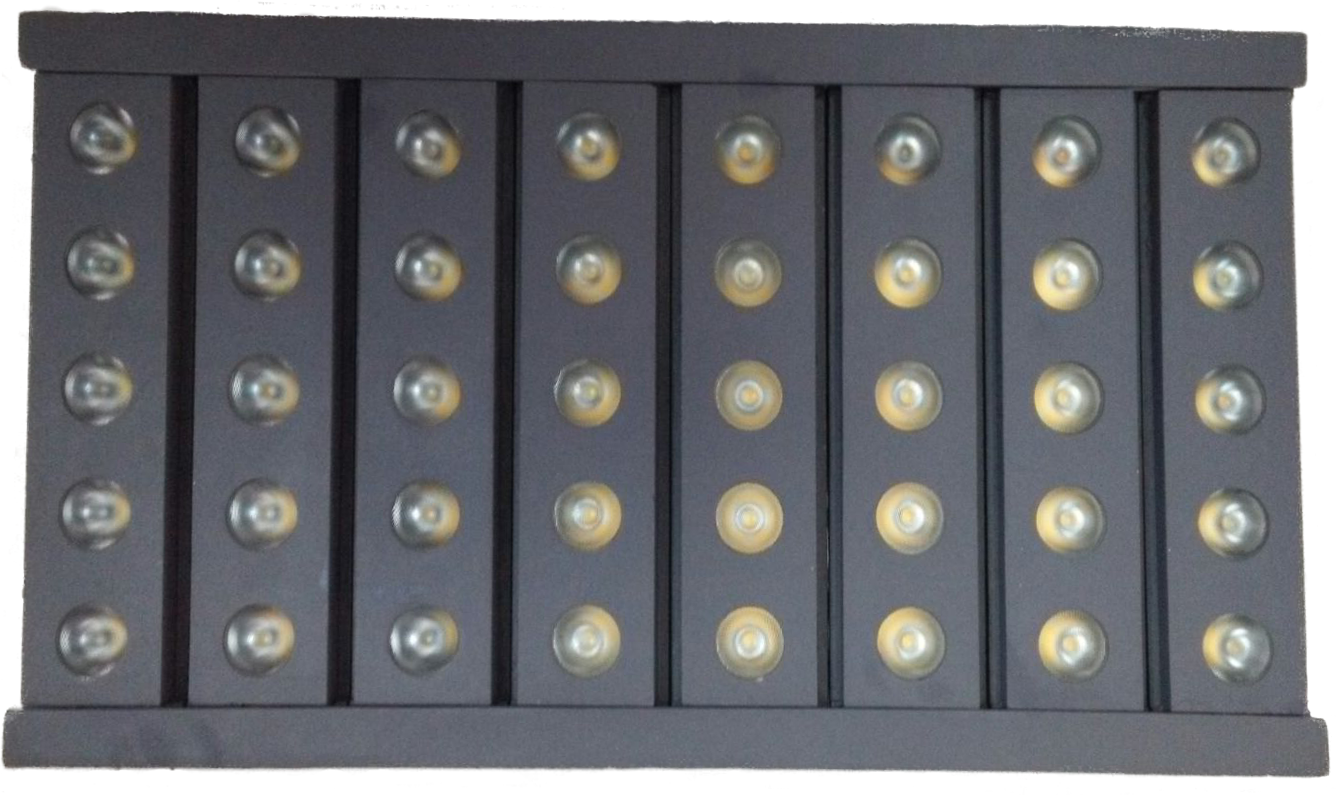

      MCL-M-240W                                         MCL-M-440W

Indoor LED Lights

Wall Mount (Indilux)

Energy consumption is no doubt a critical issue in the current crisis of energy. Companies are trying to find out ways and means to become energy efficient. Observation shows that major part of energy consumption is fluorescent / traditional lights after the air conditioning. To meet the challenge Comcept has introduced highly efficient LED lights for wall mount applications.

Design Features

  • Completely solid state and advanced technology based design.

  • Precision optical design, super brightness and high uniformity.

  • Professional heat sink design to reach the best cooling effect.

  • Designed to fit in the existing structure of wall mount.

  • More lighter than existing fluorescent tube lights.

Operational Features

  • It replaces traditional fluorescent tube lights with energy efficient 16W or 24W wall mount

  • 24W Indilux provide more lumen than 2x40W tube lights

  • More lumen/watt and better output

  • More power efficiency and cost saving

  • 5 times more energy efficient as compared to traditional lights

  • Works on wide range of input AC variations, even on lower voltage up to 160V

  • 1 year warranty and 15 years of lifetime.

Indoor LED lights (Technical Specifications)

LED Power

Wall Mount Indilux

LWM-24W

LED Power  24W

Power Consumption

26.5W

LED Flux

2880Lm

Lamps Efficiency

90%

Cool Temperature

2100K ~ 6500K

CRI (Color Rendering Index)

Ra>80

IP Rating

IP50

Net Weight

1Kg

Product Dimension

1200*156*50mm

« Go Back



Ceiling LED Light: (Ecolite)


        1x4  (LCL 24W)

       2x2  (LCL 24W)


Energy consumption is no doubt a critical issue in the current crisis of energy. Companies are trying to find out ways and means to become energy efficient. Observation shows that major part of energy consumption is fluorescent / traditional lights after the air conditioning. To meet the challenge Comcept has introduced highly efficient LED lights for ceiling.


Design Features

  • Completely solid state and advanced technology based design.

  • Precision optical design, super brightness and high uniformity.

  • Professional heat sink design to reach the best cooling effect.

  • Designed to fit in the existing structure of fall ceiling.

  • More lighter than existing traditional fluorescent lights.

Operational Features

  • It replaces traditional fluorescent tube lights with energy efficient 24W ceiling LED lights

  • 24W Ecolite provides more lumen than 2x40W lights

  • More lumen/watt and better output

  • More power efficiency and cost saving

  • 5 times more energy efficient as compared to traditional lights

  • Works on wide range of input AC variations, even on lower voltage up to 160V

  • 1 year warranty and 15 years of lifetime.

Specifications

LED Power

Ceiling Light Ecolite

LCL(A)-M-24W

Ceiling Light Ecolite

LCL(A)-M-48W

LED Power 24W 48W

Power Consumption

26.5W

53W

LED Flux

2880Lm

5760Lm

Lamps Efficiency

90%

90%

Cool Temperature

2100K ~ 6500K

2100K-6500K

CRI (Color Rendering Index)

Ra>80

Ra>80

IP Rating

IP50

IP50

Net Weight

2.7Kg

3Kg

Product Dimension

600*600*65mm(2*2')

1200*280*40mm(1*4')

600*600*65mm(2*2')

1200*280*40mm(1*4')

« Go Back


GAS Station LED Lights

Gas station lights are specially designed to fulfill the need of CNG and petrol filling stations. These LED lights offer almost eight times more brightness than incandescent lamps without any negative impact on the environment. Operating for an average of 10 hours per day LED light has a life span of more than 13 years, or 50,000 hours.

Design Features

  • Completely solid state and advanced technology based design.

  • Precision optical design, super brightness and high uniformity.

  • Professional heat sink design to reach the best cooling effect.

  • Designed to fit in the existing structure.

Operational Features


       ·         Bridgelux LED having CRI>80 with super brightness, High uniformity and low optical attenuation.

              ·        Model with PC Lens of beam angle of 75*150 also available

              ·         More than 60% energy saving.

              ·         Almost zero failure rate due to absence of filament as compared to traditional bulbs.

              ·         Intelligent driver of LED lights have close to unity power factor to reduce energy bill.

              ·         Operational on both Solar as well as AC Mains.

Specifications

LED Power

75W

85W

90W

120W

Input Voltage

150-300VAC

150-300VAC

150-300VAC

150-300VAC

Power Consumption

83W

95W

99W

130W

LED Flux

8250LM

9350LM

10800Lm

14400Lm
LED Lumen efficiency 110-120Lm/W 110-120Lm/W 110-120Lm/W 110-120Lm/W
Beam Angle 75*150° 75*150°

Lamps Efficiency

90%

90%

91%

91%
Power factor >0.95 >0.95 >0.95 >0.95

Cool Temperature

2100~6500K

2100K ~ 6500K

2100K ~ 6500K

2100~6500K

Working Temperature

40˚C~50°C

-40 °C ~ 50 °C

-40 °C ~ 50 °C

-40˚C~50°C

IP Rating

IP50

IP50

IP66

IP66

Net Weight

7.5Kg

7.8Kg

7.2Kg

8.2kg

Product Dimension

550x550x120mm

550*550*120mm

550*550*120mm

550*550*120mm




« Go Back

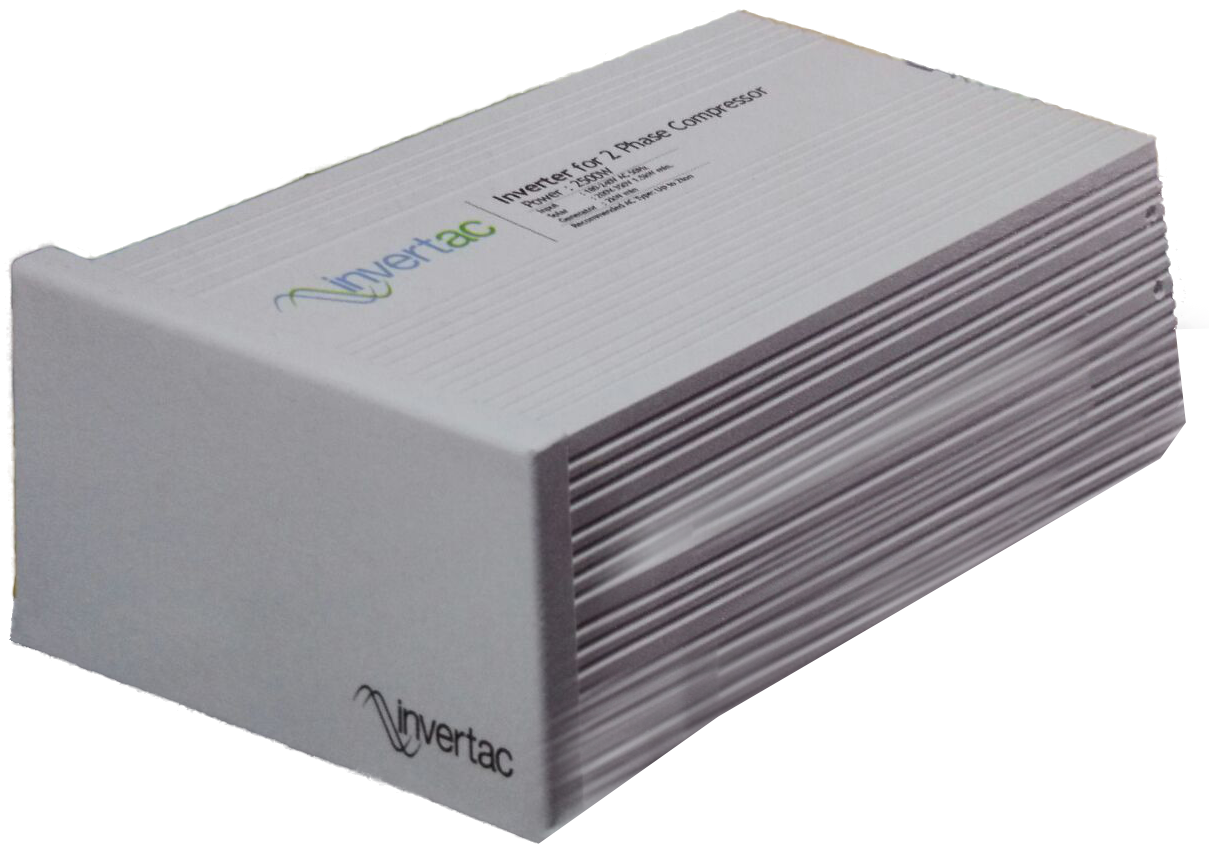

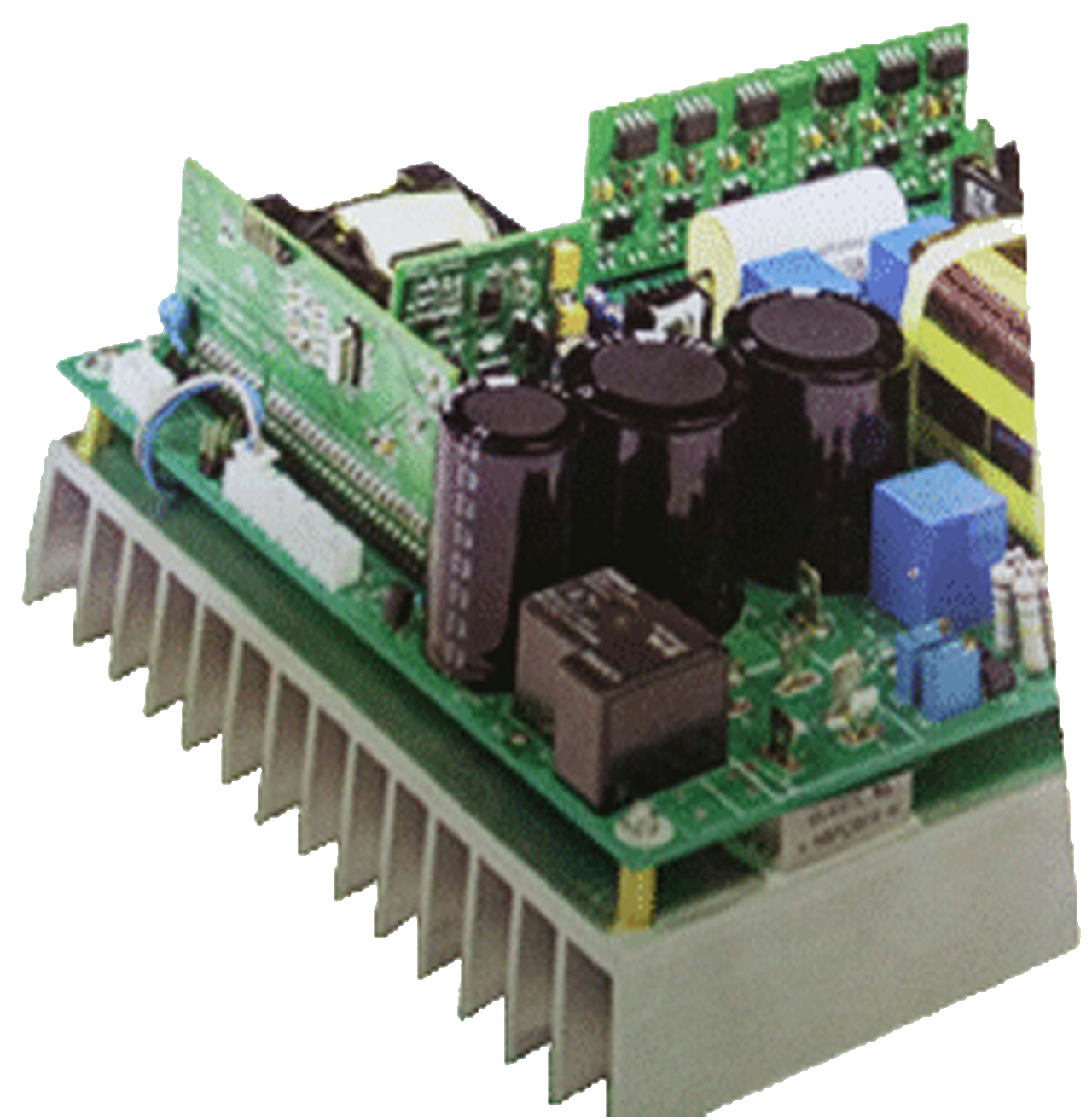

invertac

Invertac is a standalone add-on inverter for conventional air conditioners. It is designed to be installed with minimum hassle in a         non-invasive manner and seamlessly integrates into existing installations.

   With Invertac, user get complete control over the power consumption and thus reduces energy cost utility bills. Controlling the              power consumption ofan AC is now no harder  than controlling the speed of a fan in your house.

   Invertac includes features like soft-start and demand-based power controlthat allow it to save energy and run The air-conditioner       on   small generators,UPS or solar inverters.

 Features

           ·         Easy installation and seamless integration into existing Air conditioners

           ·         Runs autonomously in the background without any user intervention or input

           ·         Soft-start technique removes current surges at start-up

           ·         Demand-based power control leads to energy savings

           ·         Intelligent power control and soft-start techniques allow AC to run on small generator or even UPS

           ·         Intuitive user-interface (optional) allows monitoring of the Inverter and control over power consumption

   ·         Splash-proof design built for outdoor environment

All these features make Invertac a truly versatile and multi-benefit add-on for  any rotary air-conditioner.

The following table shows the saving of energy by almost 35% using Invertac with different air-conditioners:

AC without INVERTAC

AC with INVERTAC

Capacity  (ton)

Initial Torque (A)

Full Load     (A)

Nominal Load  (A)

Power        (W)

Initial Torque (A)

Full Load   (A)

Nominal Load  (A)

Power        (W)

Savings (%)

2

65

15

13.2

2904

0

13

7.7

1694

41

1.5

35

10

8.3

1826

0

9

5.7

1254

31

1

18

8.5

7.3

1606

0

7

4.7

1034

35

Specifications

Input: 160 – 265V 50Hz 1-Phase AC, 320 - 460V 3-Phase AC

Output

Model

Output Type

Max Power (W)

CAI-112

3 Wire 2 Phase Variable Frequency PWM

1200

CAI-125

3 Wire 2 Phase Variable Frequency PWM

2500

CAI-340

3 Wire 3 Phase Variable Frequency PWM

4000

PROTECTION

   Over Current, Under voltage, Over Temperature

SENSING AND MONITORING

    Power Consumption, Outdoor Temperature

   Suction and discharge Line Temperatures



Invertac 1000

  Single phase inverter normally is used to control the single phase AC motor's speed and  torque by varying AC motor's         input frequency and voltage. The Invertac 1000 works with  single phase 220V to 240V input to three phase voltage output (lower than input voltage)  and due to its compact design, These inverters can be installed in a small space easily.

Specifications

Inverter power range: 1.5kW to 3.7kW

Input voltage: 1 phase 220V, 230V, 240V fluctuate rate 15% plus-minus

Output voltage: 3 phase 0 to rated input voltage

Unique Performance Characteristics

  • Output high torque under very low frequency
  • With speed adjusting potentiometer, panel can be connected to other devices
  • Check & modify frequency inverter parameters
  • Provide RS-485, Modbus-RTU to communicate with PLC
  • Rich fault protection function to monitor operation record
  •   Dynamic torque control, rapid response according to load's change

Advantages:

  • Soft start function largely reduces starting current which is usually 7 to 8 times of the load current.
  • Reducing the starting current extend the life of the motor.
  • Reduces the power line disturbances and eliminates the supply voltage sag since the  motor is started at zero                              voltageand ramped up

Applications:

Auto fuel filling pumps, Solar water pumps, Drawing machine, textile, packaging machinery, tobacco, paper making, stone machinery, mining machinery, printing machinery, food, chemical, transmission, wire and cable, metallurgy, machine tools, wood machinery, ceramic industry, building materials, and much more industries.



Solar Auto Filling Station (SAS 3000)

In case of power outages the system provides enough energy to drive filling pumps as well as LED lights to ensure the business activity round the clock and enhances the profitability of the business.

The Solution Comprises of

  • High capacity off line inverter with battery charging to drive inductive load

  • Highly efficient LED lights 80W or 100W

  • Maintenance free batteries as per requirement

Features

  • High tech inverter to drive the inductive load

  • Efficient LED lights with estimated life up to 15 years

  • 4 to 6 hrs back up during power outages depending upon Battery

  • Provision of Solar power to enhance back up time

  • 24hrs smooth business

  • Energy saving up to 60%

  • Reduction in operation cost

  • Efficient design of UPS with all protection

  • More than 500% cost saving as compared to generator

« Go Back

Copyright Comcept 1992-2014

Disclaimer  ||  Designed by Eteck
